LARGE FORMAT SEMIAUTOMATIC TRANSFERPRESS

Large format semiautomatic transfer press ( PS - 5, PS - 6 )

The large format transfer press is suitable for transfering the sublimation inks to the textile, or for heating the disperse inks on a coated fabric. The pneumatic large format semiautomatic transfer press can also be used for heat treating flags or for pressing large format matrices on canvas surfaces.

Once the fabric is put on a carriage (rolling on rails), it is then placed between the pressure plate and the heated surface. The pneumatic cylinders push the pressure plate and the fabrics to the heated surface. After ironing the pressure plate automatically sinks back to its original position.

The compression force, temperature and the ironing time are adjustable.

Large format transfer press ( PS - 7 )

At the transfer press Type PS - 7 the operator places the fabric and the transfer paper on a drawer. The operator pushes than the drawer - rolling on rails - between the pressure plate and the heated ironing surface. The pneumatic cylinders push the pressure plate and the fabric to the heated ironing surface.

Type

PS - 5

PS - 6

Heated surface

800 x 1000mm

600 x 1500mm

Temperature

controlled up to 230 °C

Heating power

8800W

9900W

Ironing time

5 sec - 1hour

Compressing force

max. 15000 Newton

Mains voltage

400/230V, 50Hz, 20A

Air

6 bar


Type

PS - 7

Heated surface

  650 x 950mm

Temperature

  controlled up to 230 °C

Heating power

  6000W

Ironing time

  5 sec - 1hour

Compressing force

  max. 18500 Newton

Mains voltage

  400/230V, 50Hz, 10A

Air

  6 bar

Large format semiautomatic transfer press ( PS - 5 )

Heated surface

  800 x 1000mm

Temperature

  controlled up to 230 °C

Heating power

  8800W

Ironing time

  5 sec - 1hour

Compressing force

  max. 15000 Newton

Mains voltage

  400/230V, 50Hz, 20A

Air

  6 bar

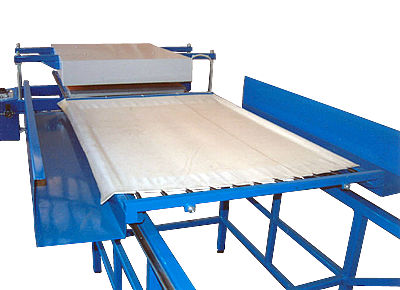

Large format semiautomatic transfer press  ( PS - 5 )

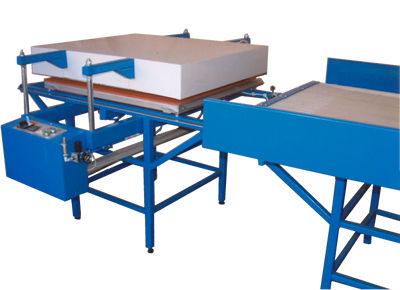

Large format semiautomatic transfer press  ( PS - 5 )

Large format semiautomatic transfer press ( PS - 6)

Heated surface

  600 x 1500mm

Temperature

  controlled up to 230 °C

Heating power

  9900W

Ironing time

  5 sec - 1hour

Compressing force

  max. 15000 Newton

Mains voltage

  400/230V, 50Hz, 20A

Air

  6 bar

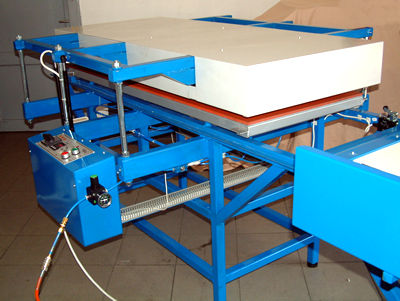

Large format semiautomatic transfer press  ( PS - 6 )

Large format transfer press ( PS - 7 )

Heated surface

  650 x 950mm

Temperature

  controlled up to 230 °C

Heating power

  6000W

Ironing time

  5 sec - 1hour

Compressing force

  max. 18500 Newton

Mains voltage

  400/230V, 50Hz, 10A

Air

  6 bar

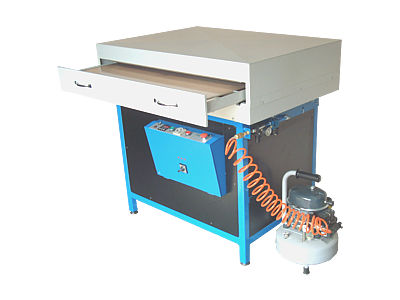

Large format transfer press  ( PS - 7 )

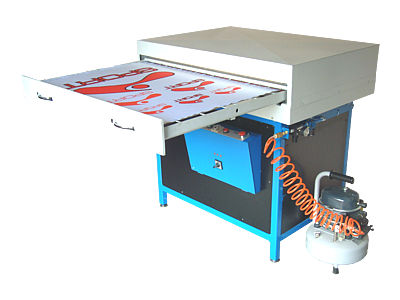

Large format transfer press  ( PS - 7 )
